Keyseating machines

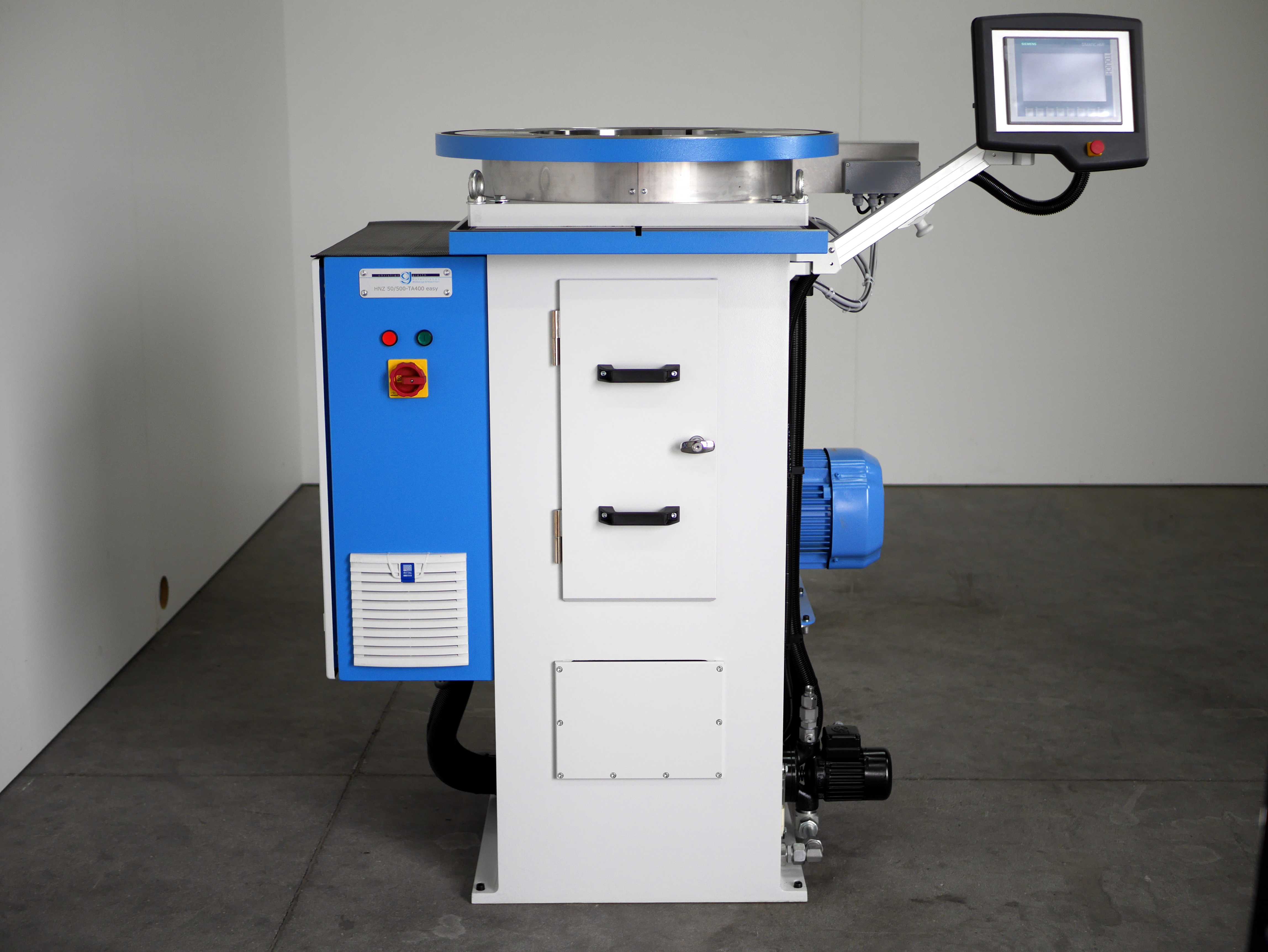

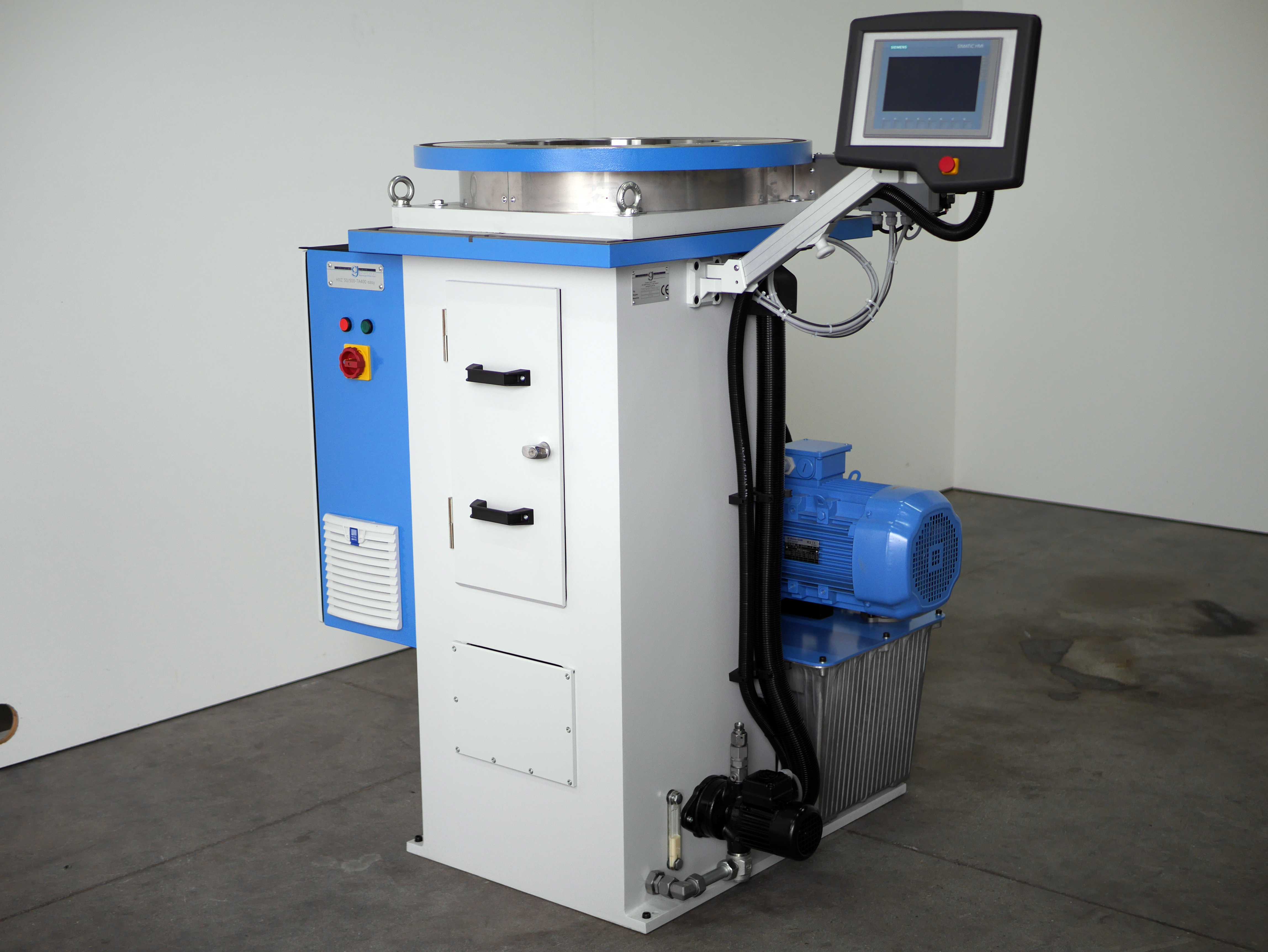

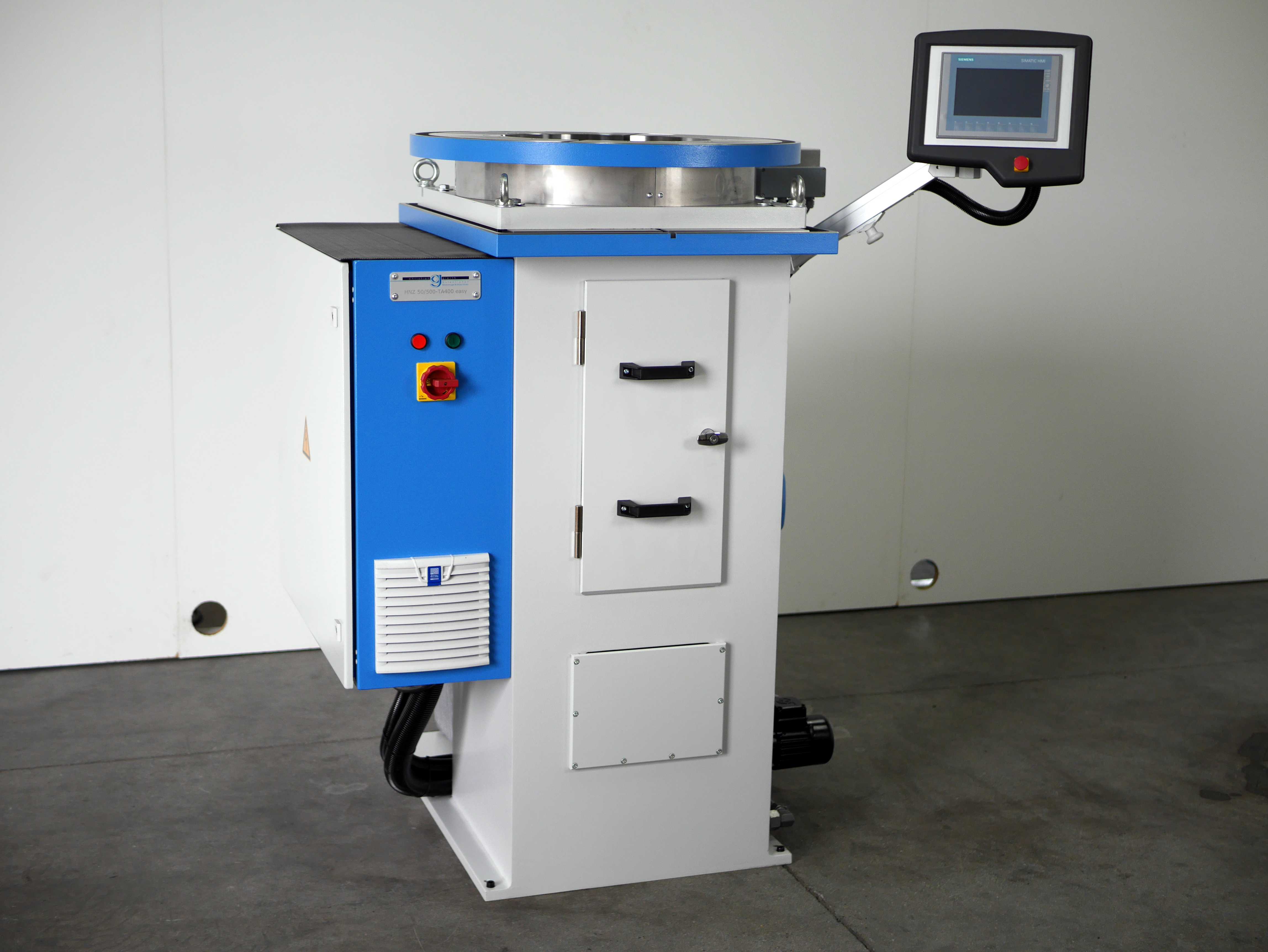

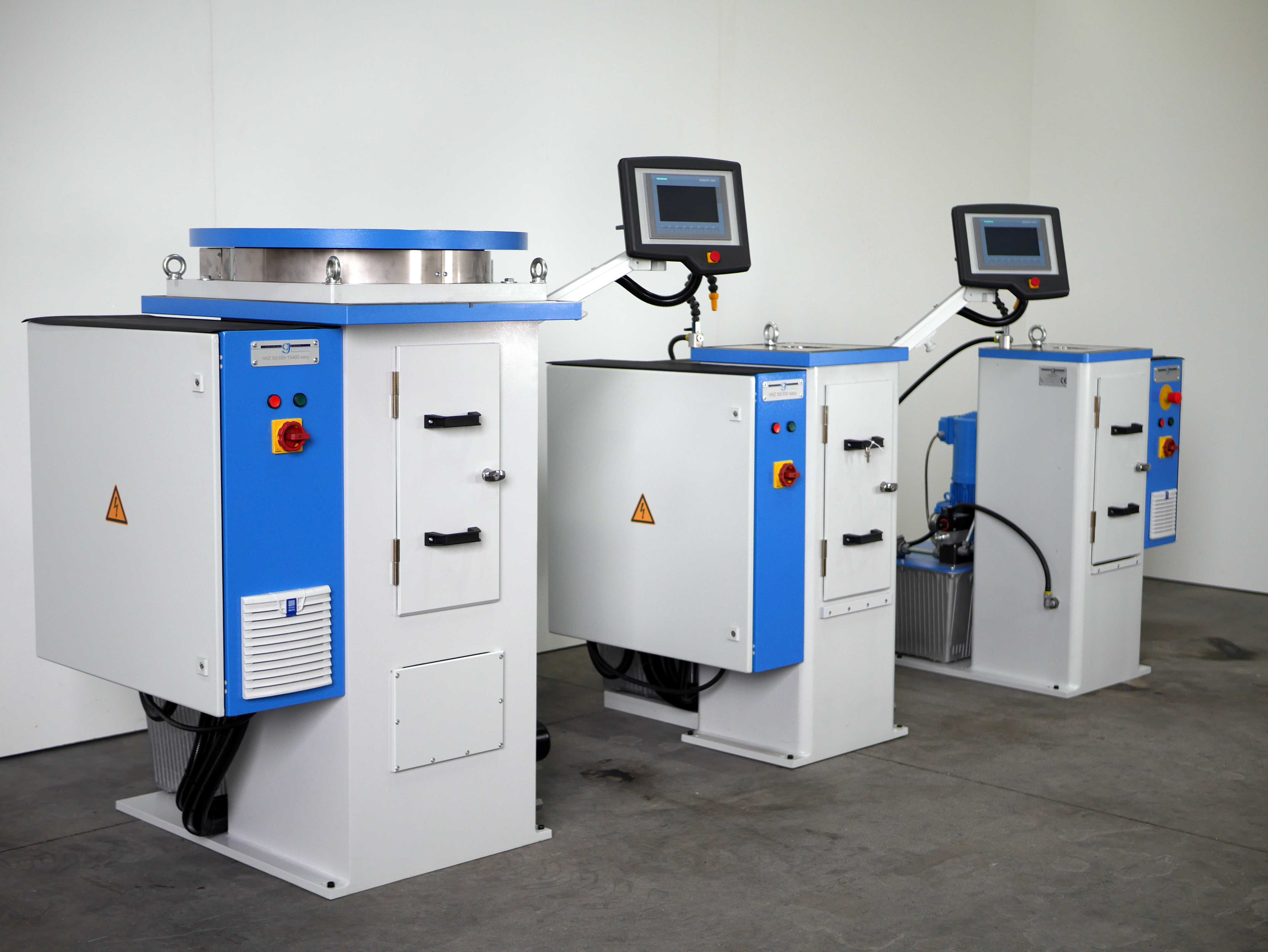

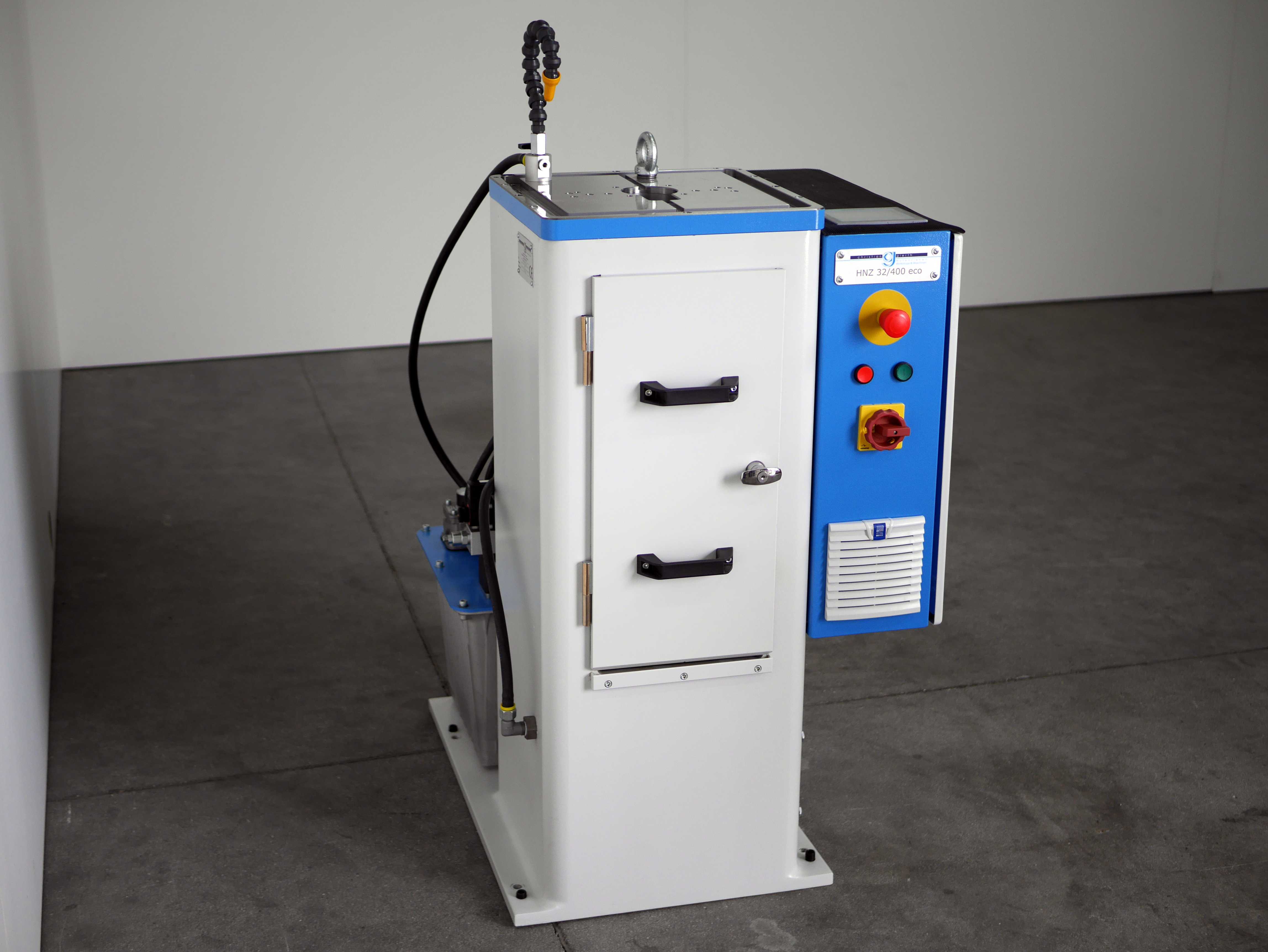

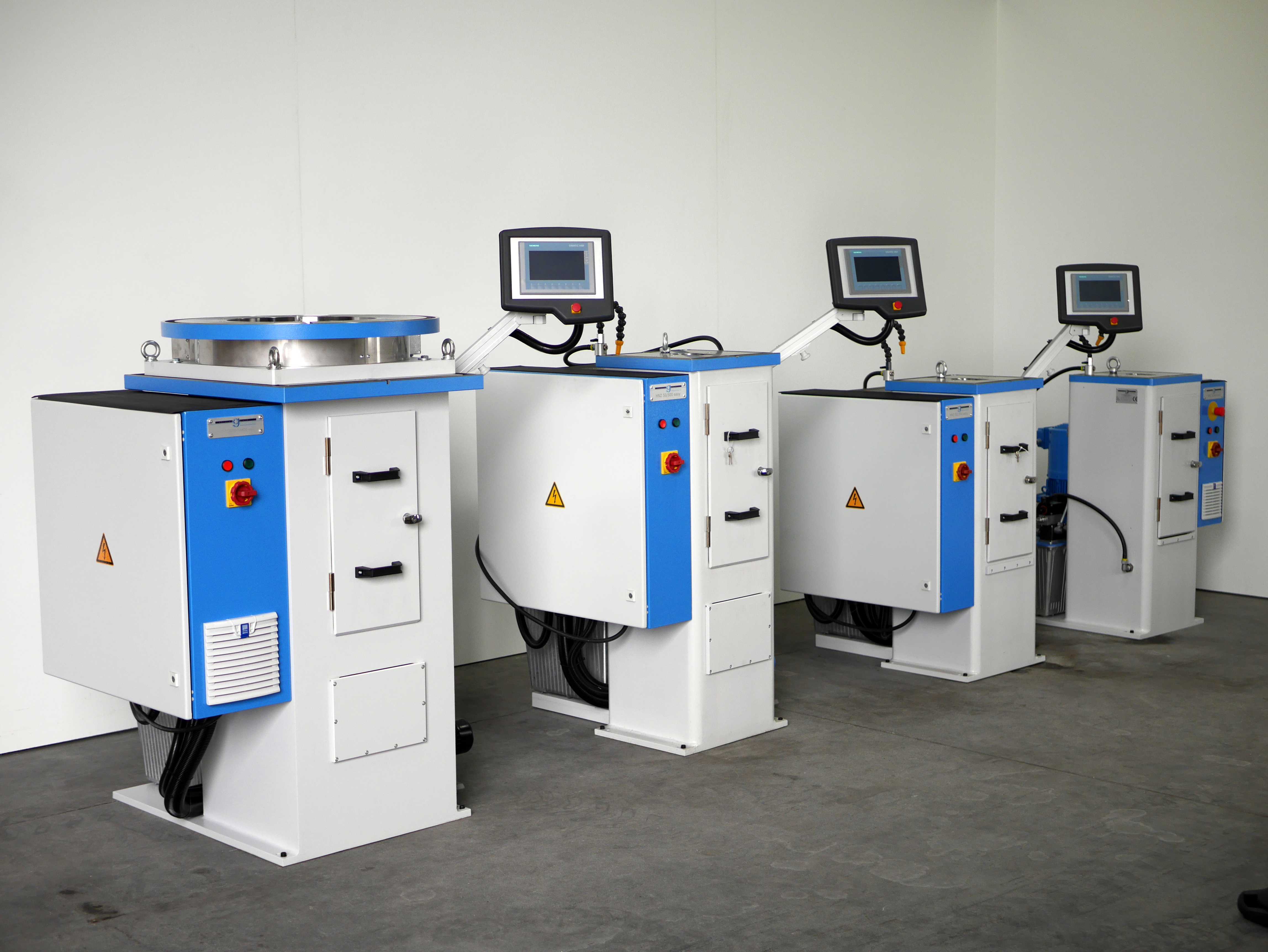

Keyseating machine

After accumulating years of experience in repairing and reconditioning keyseating machines from every manufacturer, we have developed our own keyseating machines. This includes taking account of requests from experienced users. The focus is always on particularly simple and, therefore, fast operation when constructing and improving our keyseating machines. Request our reference list and hear this confirmed by actual users.

Particulary quick and easy to set up

Easy to operate even for inexperienced staff

Setup errors minimised

Low maintenance requirement

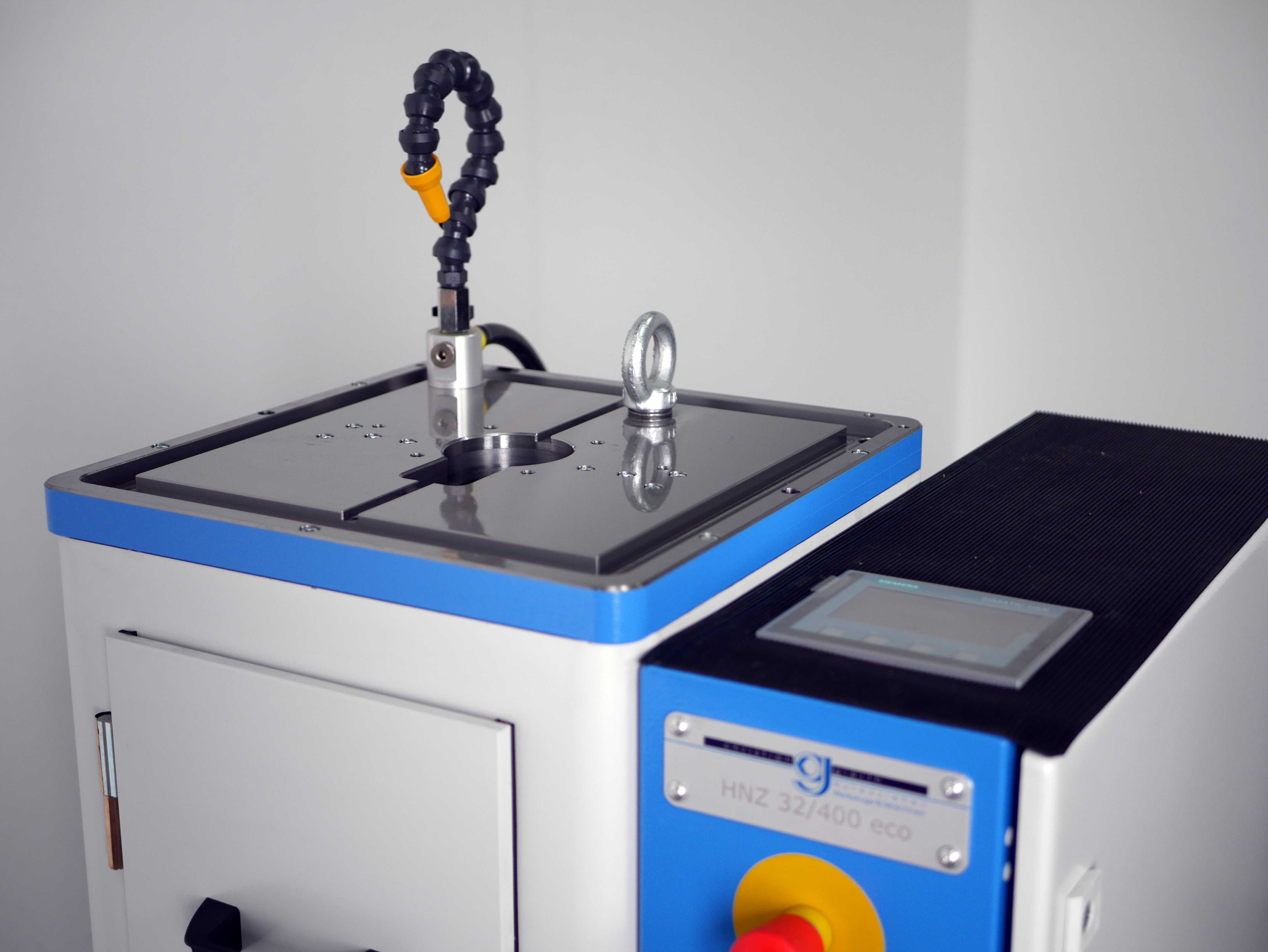

Machine type	HNZ 32/400 eco	HNZ 50/350 easy	HNZ 50/500 easy	HNZ 70/650 easy	HNZ 100/800 easy
Keyway width max. (mm)	32	50	50	70	100
Stroke max. (mm)	400	350	500	650	800
Cutting force max. (kn)	10	20	20	30	40
Cutting speed (m/min)	1 - 20	1 - 20	1 - 20	1 - 20	1 - 20
Return speed (m/min)	max. 30	max. 30	max. 30	max. 30	max. 30
Drive rating (kW)	3	5,5	5,5	5,5	7,5
Machine height (mm)	1050	1100	1250	1550	1900
Floor space BxT (mm)	700 x 900	900 x 900	900 x 900	1000 x 1000	1100 x 1200

Delivery scope

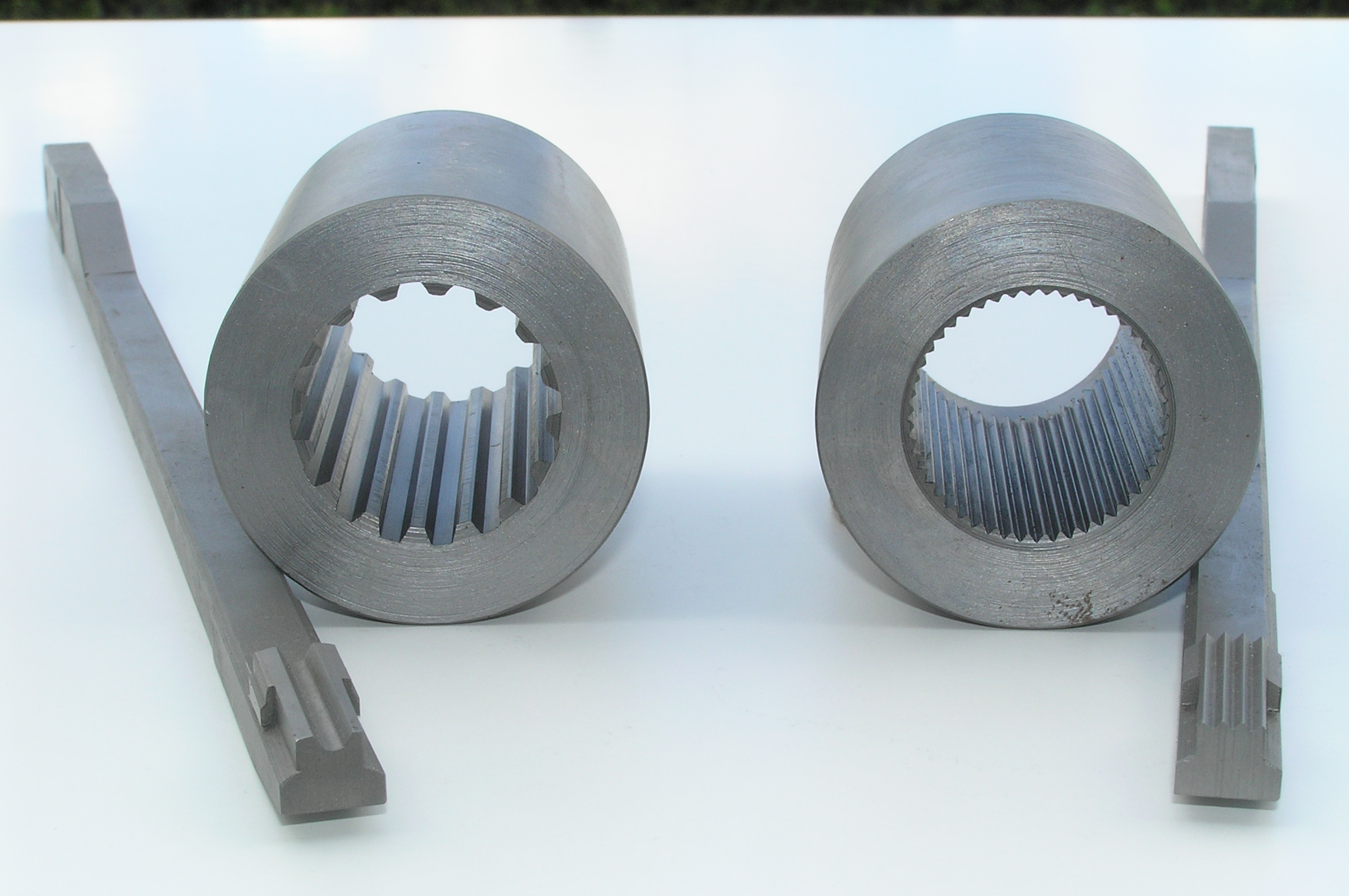

We are also happy to supply spare parts, keyseating tools and keyseating cutters, slotting tools, slotting cutters and hardbroaching tools (all manufactured in-house) for your existing keyseating machine from other keyseating manufacturers (e.g. FRÖMAG, WGW, TGW, Stuhlmann (POLYMAT), Balzat or Leistritz).

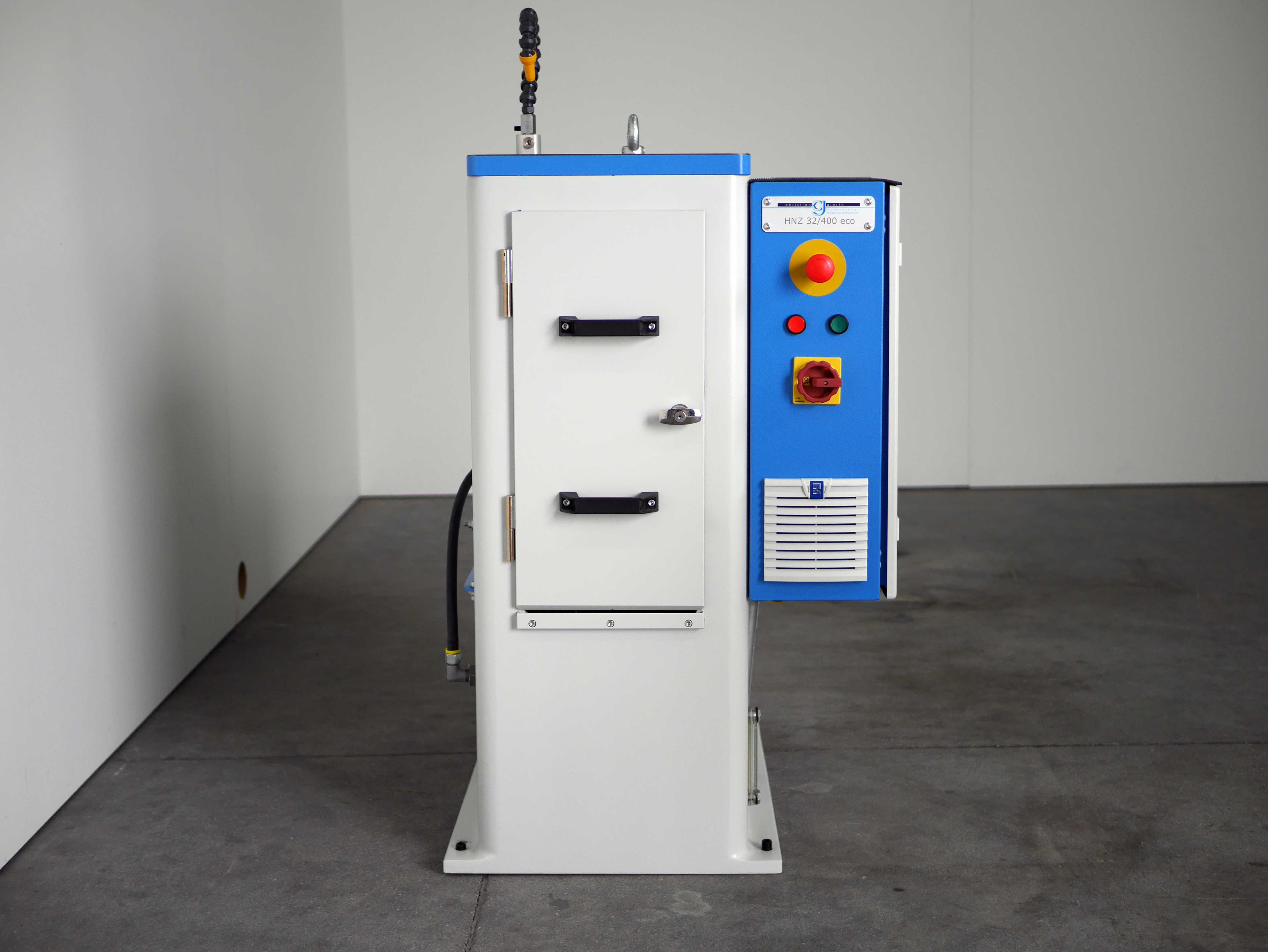

Simple construction

SPS-Control with integrated control panel
